BETA Side Entry Ballvalves: 3/4" - 2" Inlets, Part 1

DBL305

BETA Side Entry Ballvalves: 3/4" - 2" Inlets, Part 1

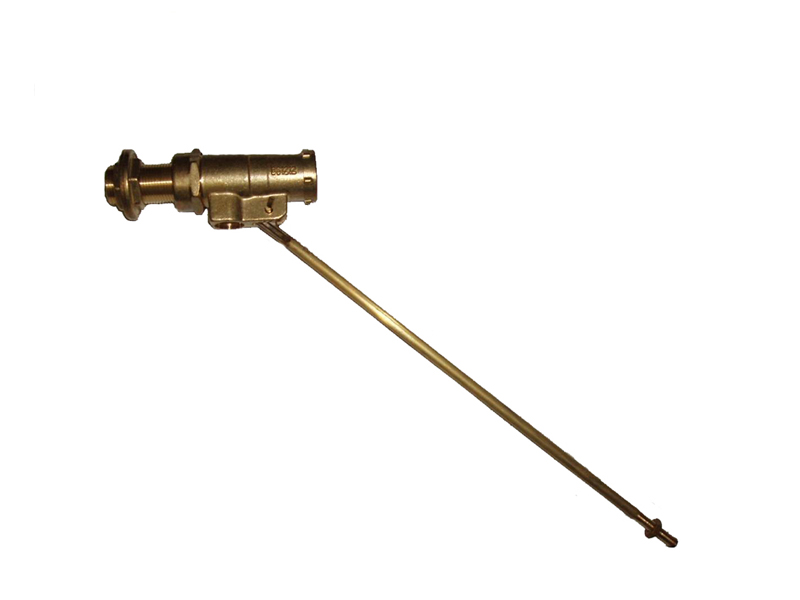

All brass float operated ballvalves are supplied with removable seat and come as standard with a nylon or brass seat and backnuts.

Brass float operated
Ballvalve supplied with removable seats and brass backnuts
To suit BS1212 Part 1

Part Codes
Tech Specification
Manuals and Guides

High Pressure

Part Codes	Inlet	Lever	Seat	Piston	Tail
DBL305	3/4"	13"	1/4"	Nylon	1.1/2"
DBL305C	3/4"	13"	1/4"	Nylon	3"
DBL141	1"	16"	3/8"	Brass	1.1/2"
DBL161	1.1/4"	22"	3/4"	Brass	1.3/4"
DBL171	1.1/2"	22"	3/4"	Brass	1.3/4"
DBL181	2"	29"	1"	Brass	2"

Low Pressure

Part Codes	Inlet	Lever	Seat	Piston	Tail
DBL355	3/4"	13"	1/2"	Nylon	1.1/2"
DBL355C	3/4"	13"	1/2"	Nylon	3"
DBL1415	1"	16"	5/8"	Brass	1.1/2"
DBL1615	1.1/4"	22"	15/16"	Brass	1.3/4"
DBL1715	1.1/2"	22"	15/16"	Brass	1.3/4"
DBL1815	2"	29"	1.1/4"	Brass	2"
