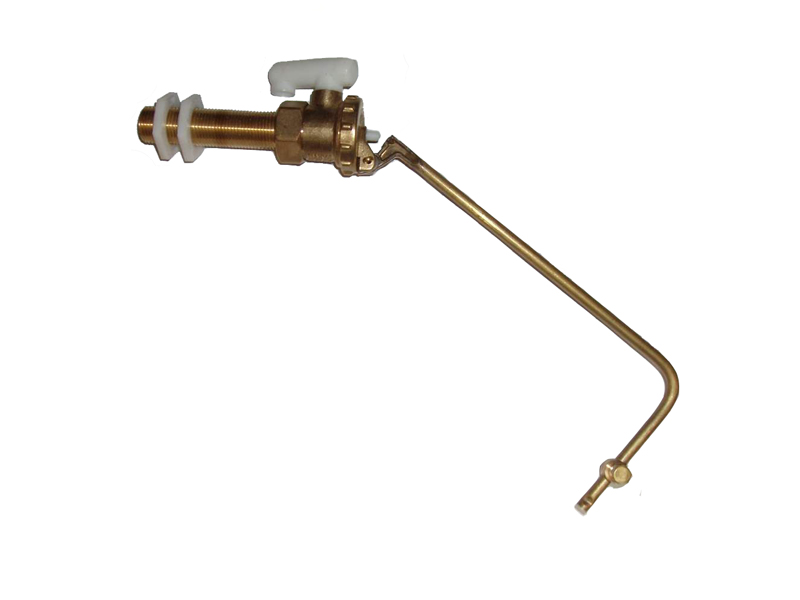

DBL201A

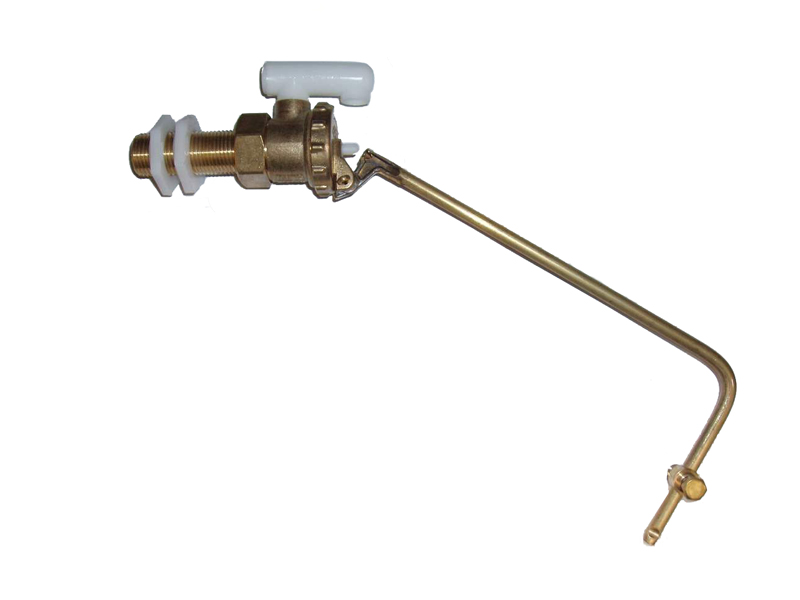

DBL201AX

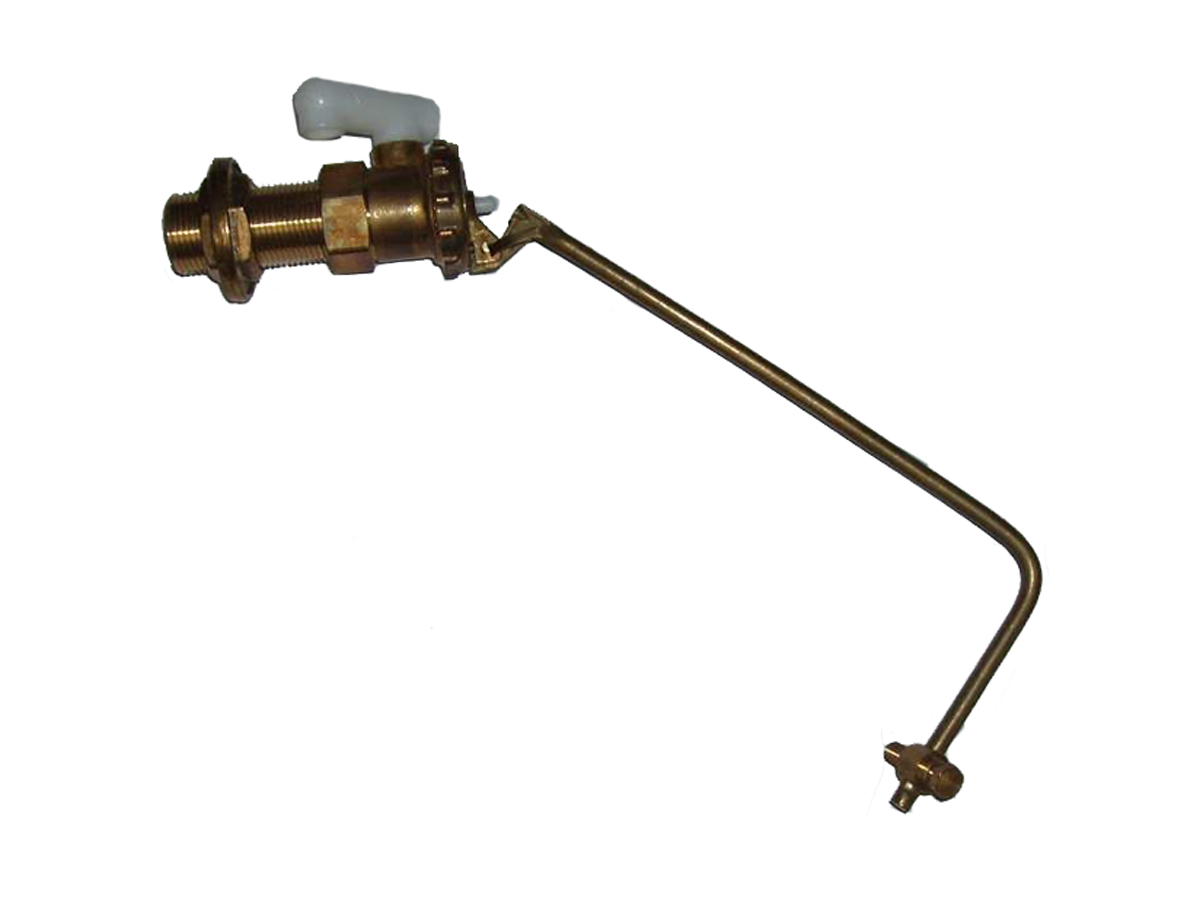

DBL201B

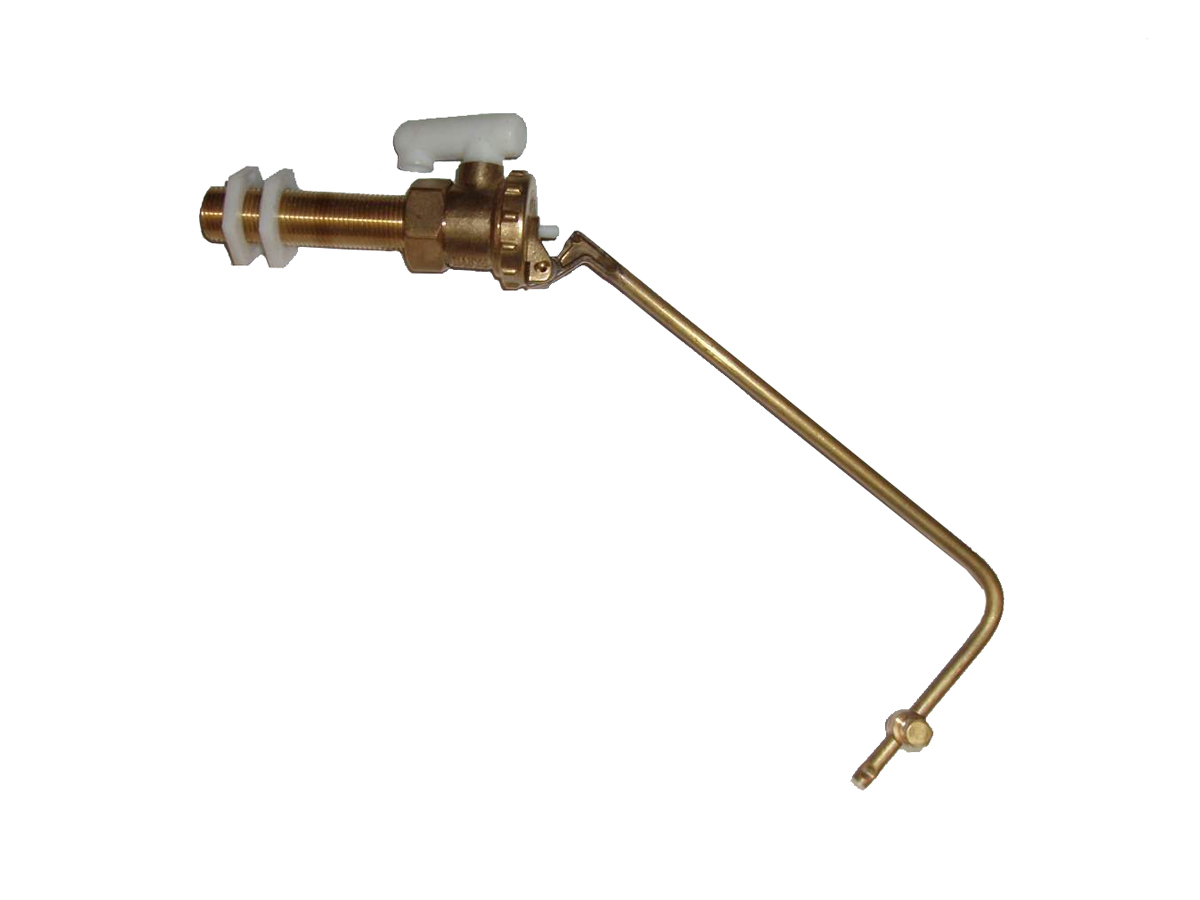

DBL201C

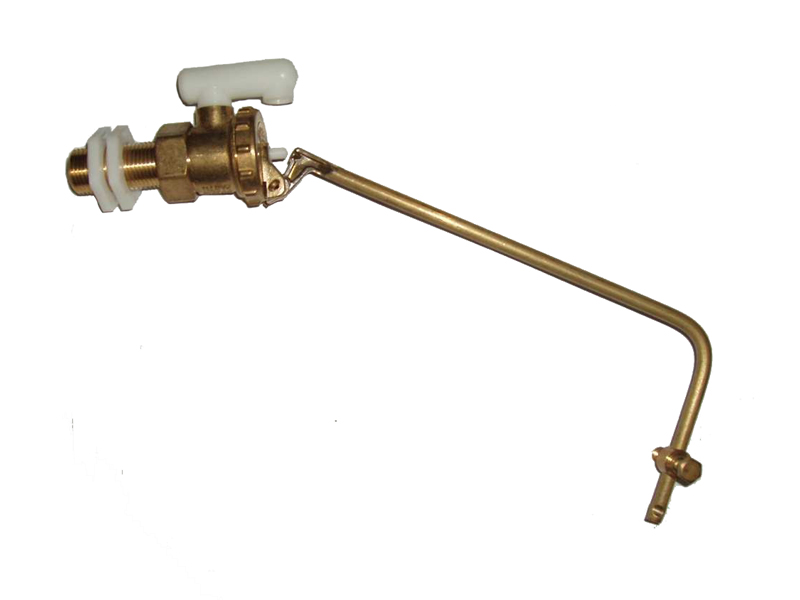

DBL2305

DBL251A

BETA Side Entry Ballvalve, Part 2

All Beta brass float operated ballvalves are supplied with removable seat and come as standard with a nylon seat and backnuts. Top discharge. Adjustable float connection on drop lever.

WRAS Approved
To BS1212 Part 2
Can be supplied with bronze seats, brass backnuts and varying lever lengths
Recommended float use:
1/2" inlet – 4.1/2" with 5/16" Thread;
3/4" inlet – 6" with 5/16" Thread
Temperature for ballvalves (NB not constant use):
Standard Nylon Seat supplied 60°; Bronze Seats 80°

Part Codes
Tech Specification
Manuals and Guides

High Pressure: 1/2" Inlet- 8.3/4" x 3.1/2" Lever, 1/8" Seat

Part Codes	Desc
DBL201A	1.1/4" Standard Tail, Brass Backplate
DBL201AX	1.1/4" Standard Tail, Plastic Backplate
DBL201B	2" Tail, Brass Backplate
DBL201C	3" Tail, Brass Backplate

High Pressure: 3/4" Inlet- 8.3/4" x 3.1/2" Lever, 1/4" Seat

Part Codes	Desc
DBL2305	1.1/2" Standard Tail, Brass Backplate

Low Pressure: 1/2" Inlet- 8.3/4" x 3.1/2" Lever, 3/8" Seat

Part Codes	Desc
DBL251A	1.1/4" Standard Tail, Brass Backplate
DBL251B	2" Tail, Brass Backplate
DBL251C	3" Tail, Brass Backplate

Low Pressure: 3/4" Inlet- 8.3/4" x 3.1/2" Lever, 3/8" Seat

Part Codes	Desc
DBL2355	1.1/2" Standard Tail, Brass Backplate

Medium Pressure: 1/2" Inlet- 8.3/4" x 3.1/2" Lever, 3/16" Seat

Part Codes	Desc
DBL231A	1.1/4" Standard Tail, Brass Backplate
